Left-Hand Threaded Rock Bolt: Ultimate Guide for Mining & Tunnel Support

1. What Is Left-Hand Threaded Rock Bolt?

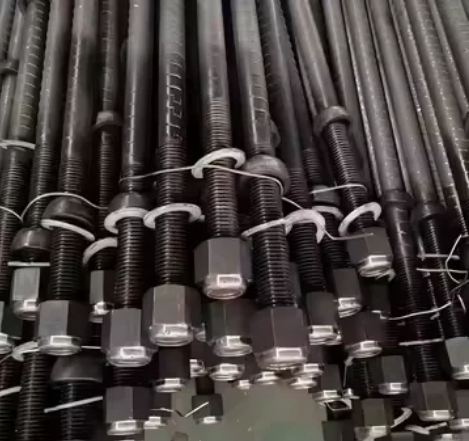

A left-hand threaded rock bolt (reverse thread rock bolt) is a high-strength full-thread anchoring component specially designed for underground mine roadways, tunnels and complex rock stratum support. Different from conventional right-hand bolts, it adopts reverse thread rolling structure with full-length equal strength, which avoids nut loosening caused by drilling rotation and underground vibration.

Left-hand rock bolts are widely recognized in coal mines, metal mines and tunnel projects for their stable pre-tightening performance, reliable anchoring effect and perfect compatibility with resin anchor cartridges.

2. Core Advantages of Left-Hand Rock Bolt

• Anti-loosening & anti-vibration Reverse thread design effectively resists the clockwise rotation force generated by drilling rigs and underground blasting vibration, preventing nut loosening and support failure.
• Full-length equal strength Integral rolled full thread ensures uniform tension throughout the entire bolt body, no stress concentration, greatly improving overall roadway safety.
• Excellent resin matching performance Full thread structure increases contact area with resin anchor cartridges, realizing end anchoring, extended anchoring and full anchoring for different rock conditions.
• High pre-tightening force Can form stable active support pressure on surrounding rock, effectively control rock deformation and crack expansion in broken and high-ground-pressure roadways.
• Mechanized installation friendly Suitable for rapid mechanical installation, greatly improving tunneling efficiency and reducing manual construction cost.

3. Common Specifications & Technical Parameters

Our factory provides complete standard and customized left-hand rock bolts to meet global mining project requirements:

• Common diameters: Φ16mm, Φ18mm, Φ20mm, Φ22mm, Φ25mm
• Common lengths: 1.0m–3.0m (customizable)
• Strength grade: MG335, MG400, MG500 high-strength steel
• Surface treatment: Black anti-rust finish, electro-galvanized, hot-dip galvanized
• Supporting accessories: Left-hand lock nut, steel anchor plate, flat washer, spherical washer

4. Main Application Scenarios

Left-hand threaded rock bolts are the preferred support solution for complex underground engineering:

• High ground pressure & large deformation mine roadways
• Broken surrounding rock and soft rock stratum reinforcement
• Coal mine, gold mine, iron mine and other metal mine support
• Highway tunnels, railway tunnels and hydropower underground caverns
• Permanent active support for key engineering sections

5. Left-Hand vs Right-Hand Rock Bolt: Key Difference

Many global buyers confuse left-hand and right-hand bolts. The core difference lies in anti-loosening performance under working vibration:

Right-hand bolts are easy to loosen under continuous drilling rotation and blasting vibration. In contrast, left-hand reverse thread structure can lock the nut tightly during mechanical installation, maintaining stable pre-tightening force for a long time. Therefore, left-hand rock bolts are more suitable for permanent support and high-risk complex roadways.
